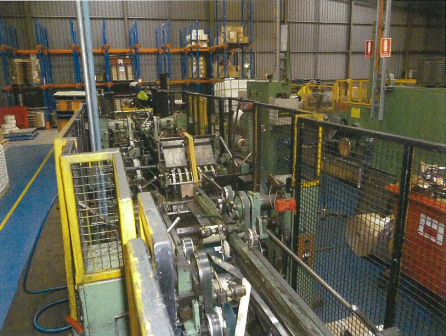

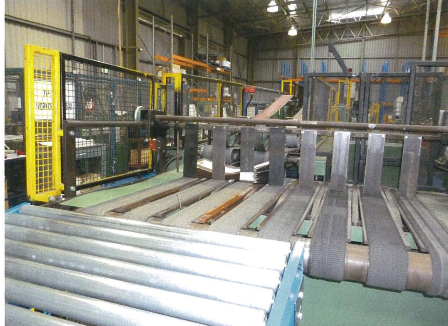

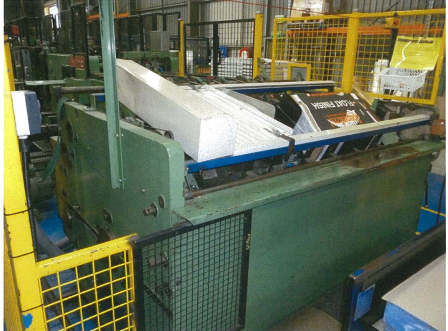

W+HBottomer mod. AD2360/22 of 1974 and refurbished in 2000 for the mechanical parts.
Sack length steeped-end: 435-1370 mm.
Sack lengths flush cut: 435-1370 mm.
Sack widths: 350-700 mm.
Bottom widths steeped-end sacks: 75-210 mm.
Bottom widths flush cut: 75-220 mm.
Dimensions of opened up bottom: 200-480 mm.
Distance between bottom centers: 360-1300 mm.
Tube lengths with min. bottom width: 560-1500 mm.
Tube lengths with max bottom width: 870-1640 mm.
Valve patch cut-off lengths: 90-240 mm.
Internal bottom patch cut-off length: 140-500 mm.
Hinge valve cut-off lengths: 120-240 mm.
Bottom cappin patch cut-off lengths: 180-600 mm.
The Bottomer has 2 patch units (which are not utilized in this moment) without printer.
Max speed: 100-110 sacks/min.

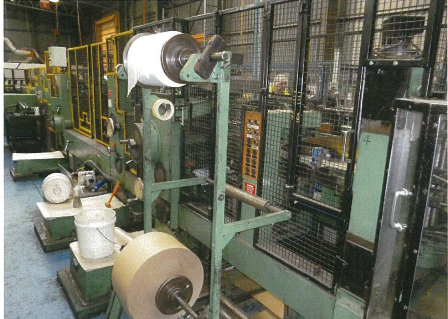

With no. 2 valve units, each adjustable to either side.
The valve unit can be used to do an internal patch if required.
