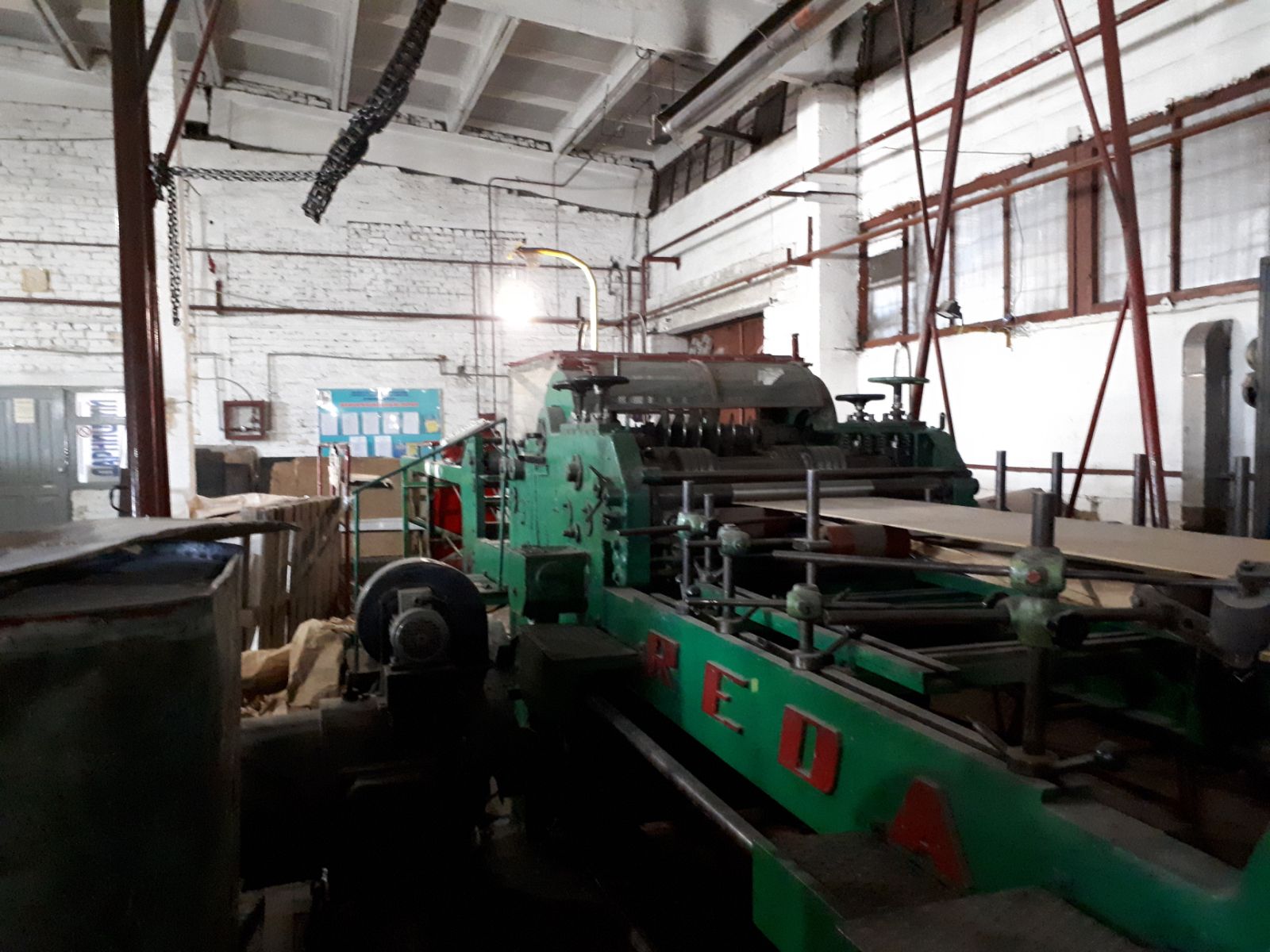

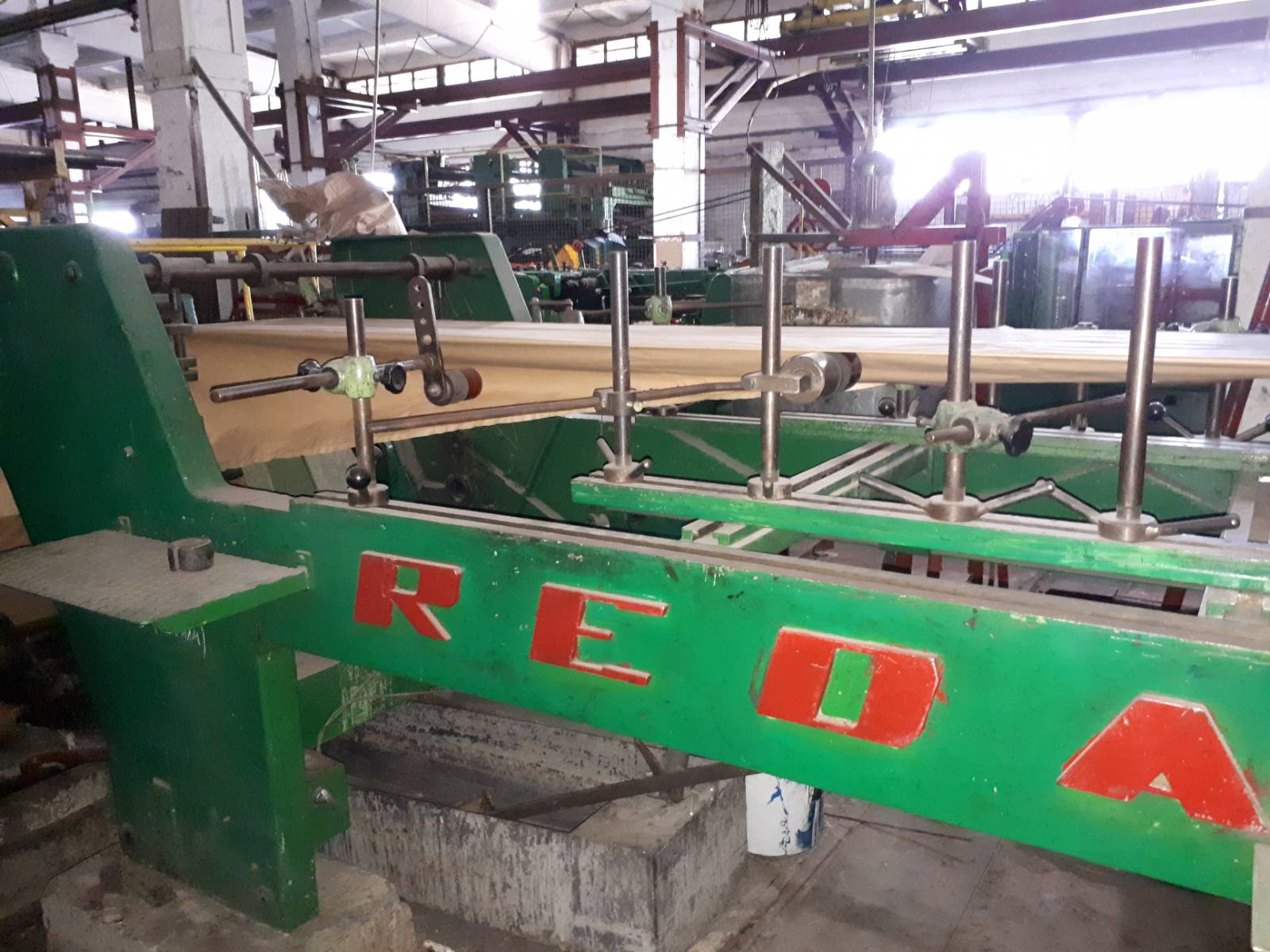

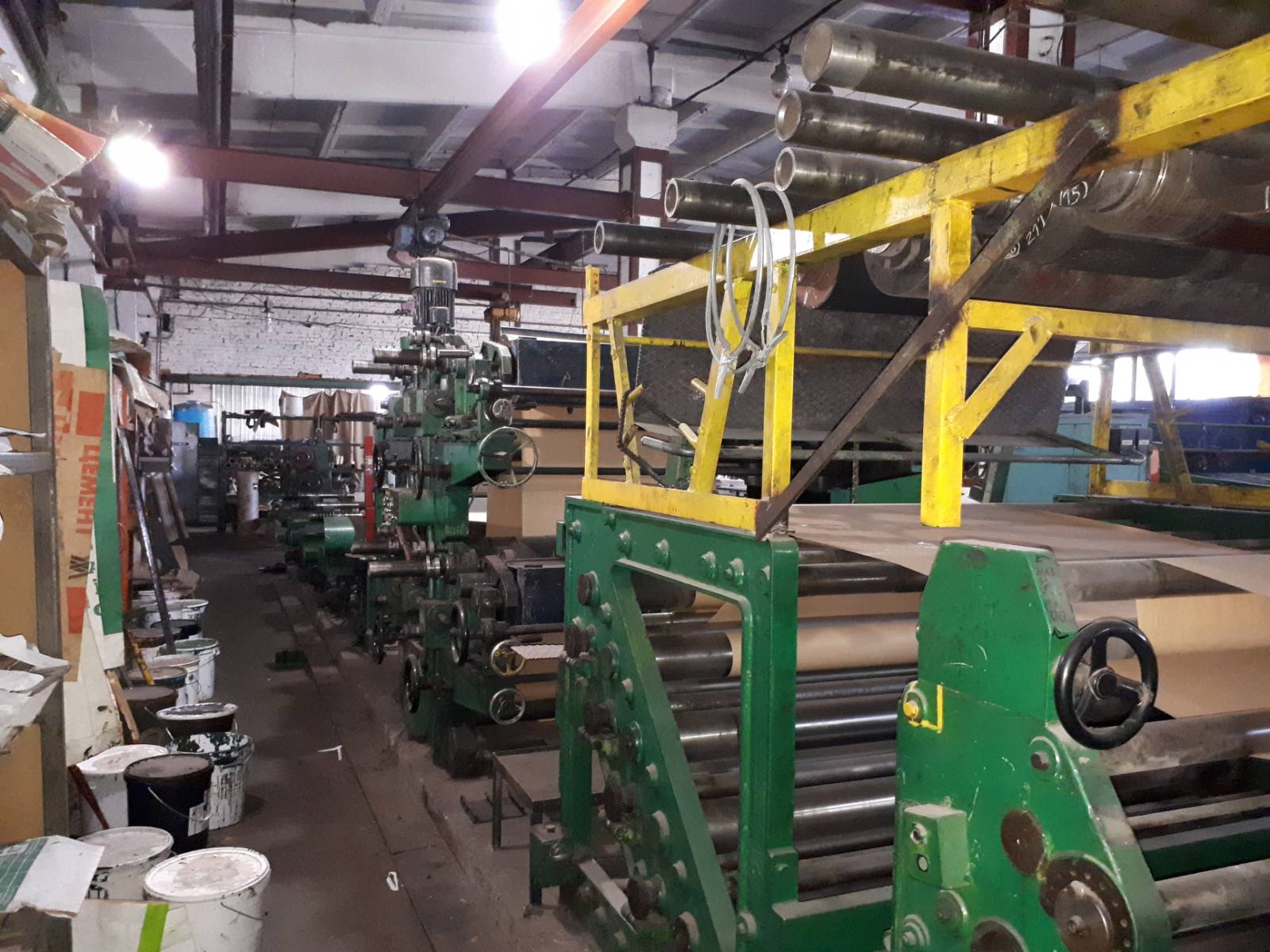

Tuber GARTEMANN & HOLLMANN 501-REDA.
- Year of production: 1971
- Straight cut
- the flexographic printing unit 4 col.
- Tube length: 440-1360 mm.
- Tube width: 330 - 800 mm.
- Printing length: 1200 mm.
- Number of paper plies: max. 4
- Roll width: 400 - 1540 mm.
- Paper weight: 60-120 g / m2
- Speed: 80-150 tubes/min. in normal mode, a maximum of 200 tubes/min. (depending on the number of plies and the quality of the paper)
- Counter/Stacker

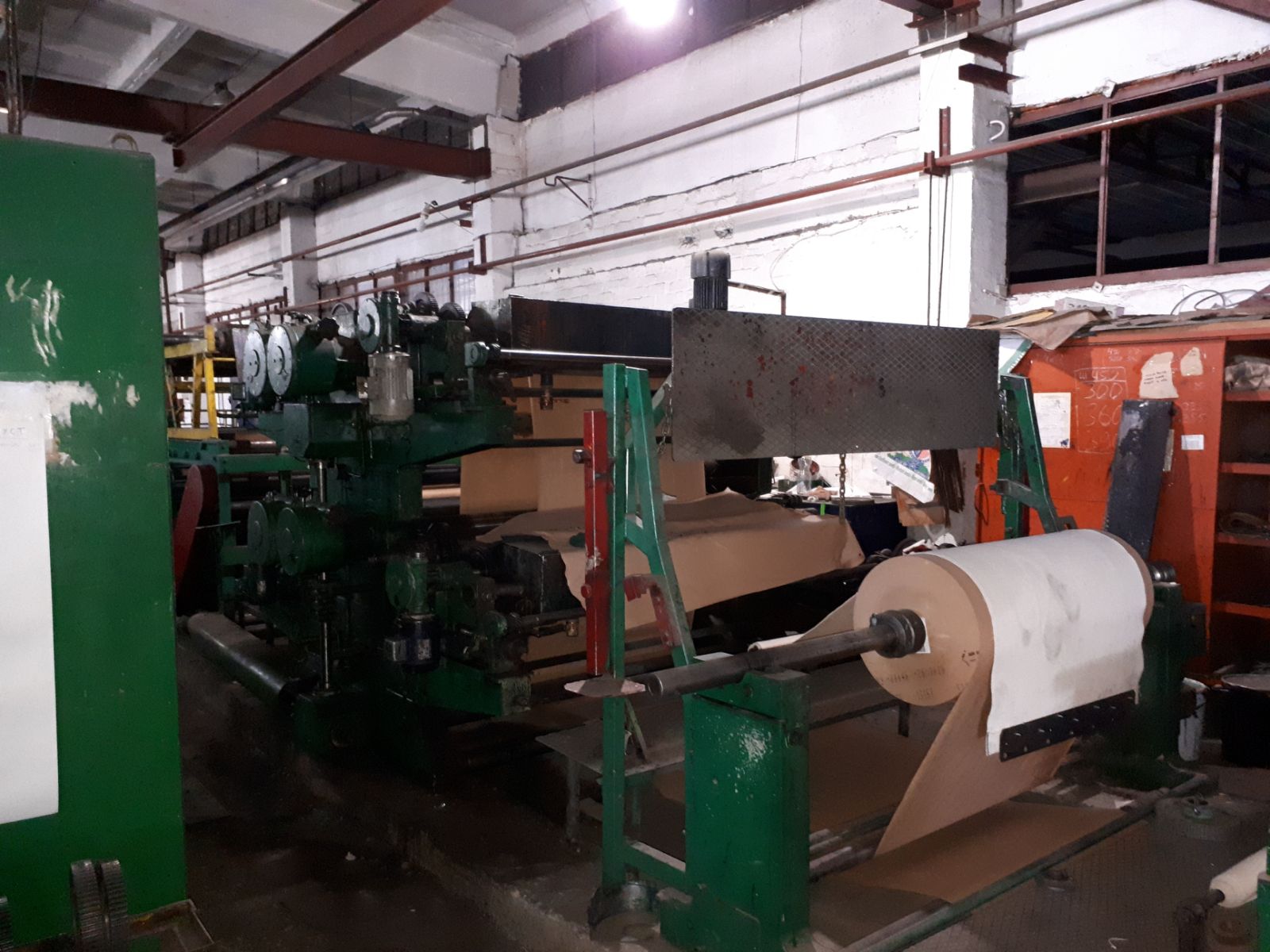

- 4 reel stand for rolls up to Ø1150 mm. with axial adjustment;
- monorail 2t. (transportation of rolls to the rolling units);
- units of preliminary pulling-tension of the web;
- a unit for longitudinal perforation of webs;
- units of transverse glutinous sizing up to 4 piles of paper;
- unit of longitudinal gluing;
- tube formation;
- rolling unit and radial tube;
- groove unit for dispensing the tubes and forming stacks
- The total power consumption is 45 kW / h.
- Overall dimensions: 2,4x2,5x3,5 m.
- Visible in operation
