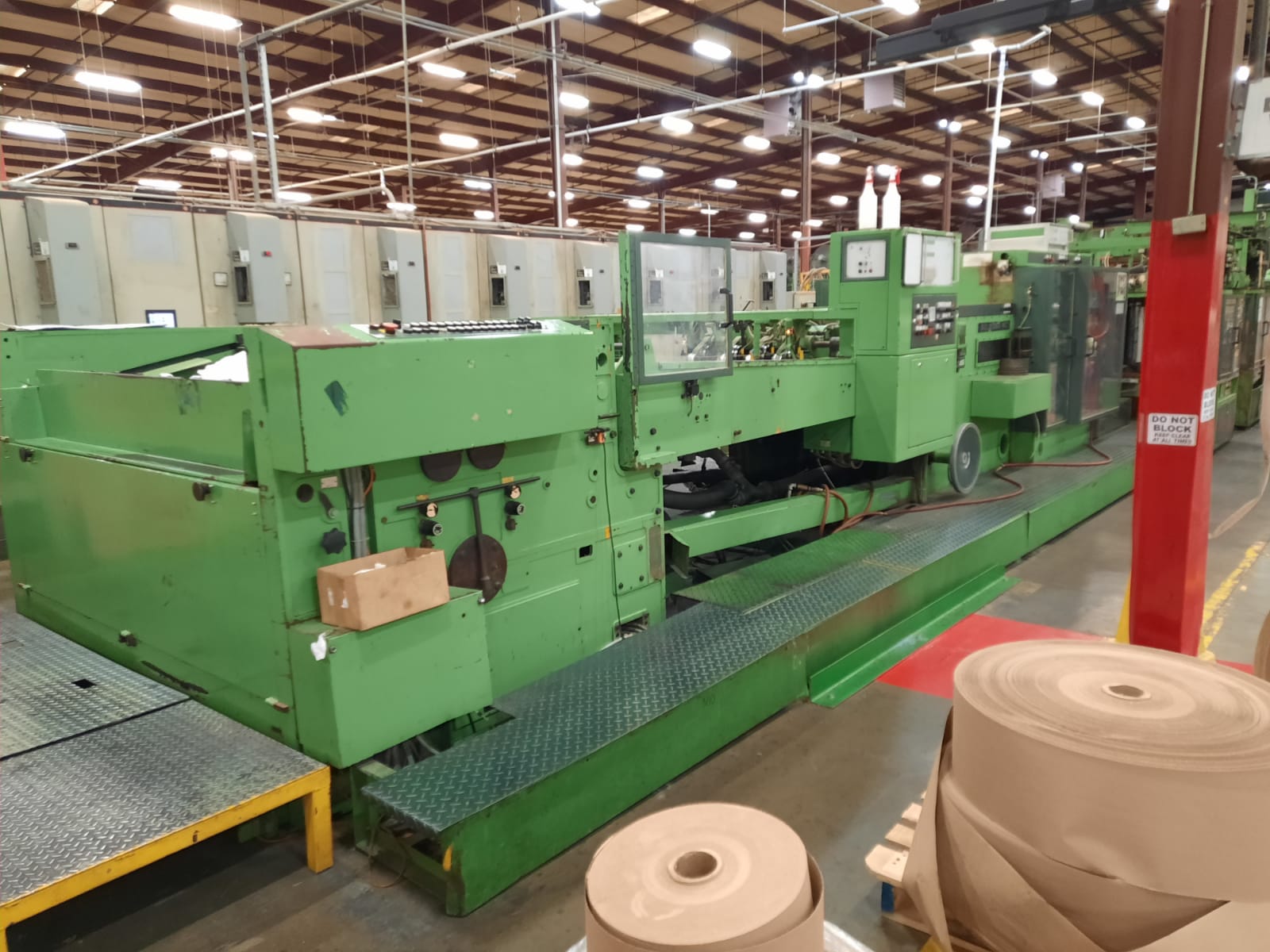

Bottomer W&H AD2368 NC

S-Press + Pallettizer ICOMA (can be offered as option)

- Year: 1992

- Min-max bags width: 300-740 mm

- Min-max bottom width: 80-260 (260 when valve)

- Tube length for smallest bottom: 445-1400mm

- Tube length for biggest bottom: 680-1545 mm

- Bag length for smallest bottom: 390-1340 mm

- Bag length for biggest bottom: 535-1400 mm

- Bottom center distance for smallest bottom: 250-1200 mm

- Bottom center distance for biggest bottom: 310-1125 mm

- It has 2 inner patch units top & bottom

- In-line printer for both sides. Registration system for preprinted patch material probably is not

working correctly

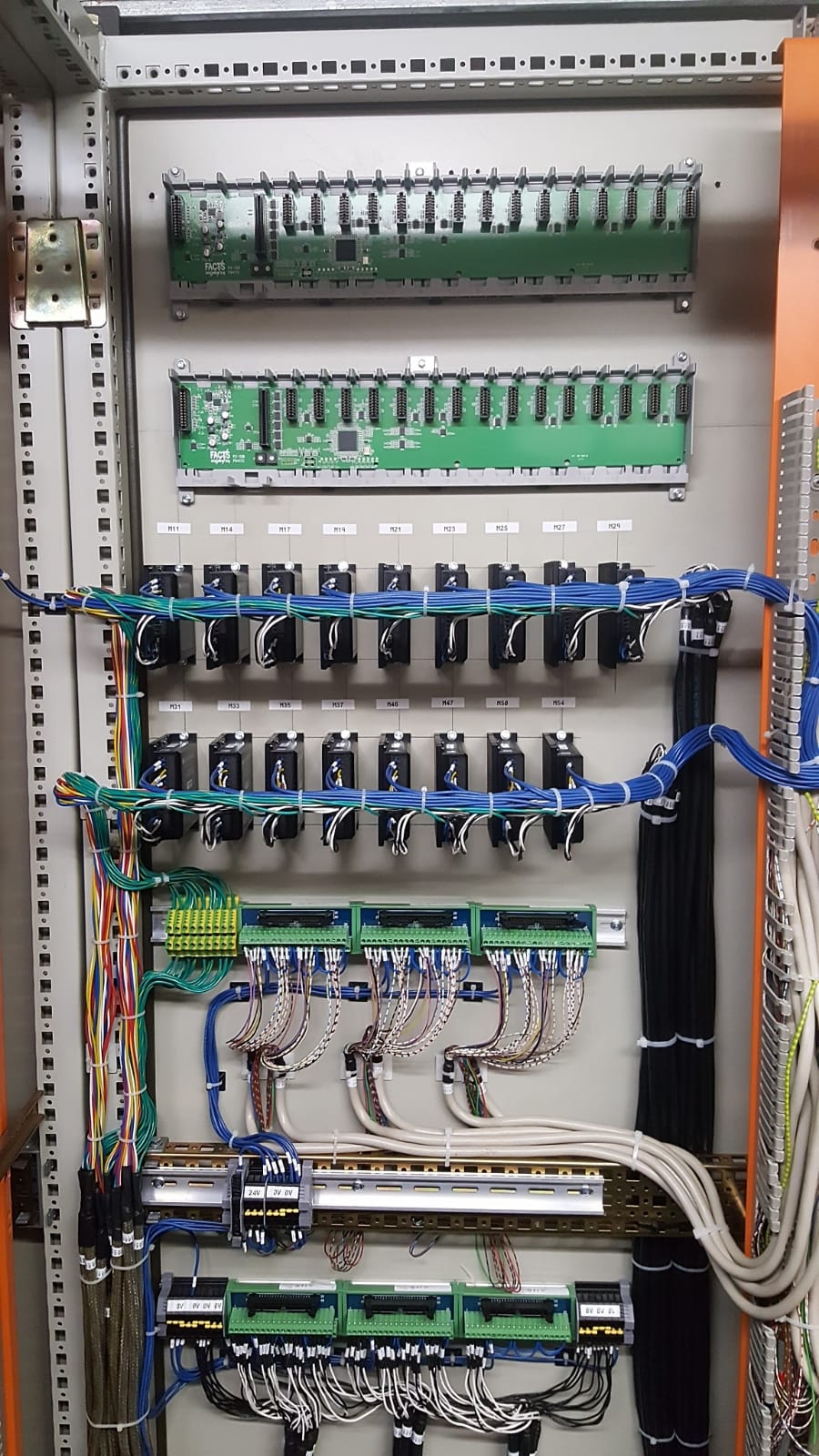

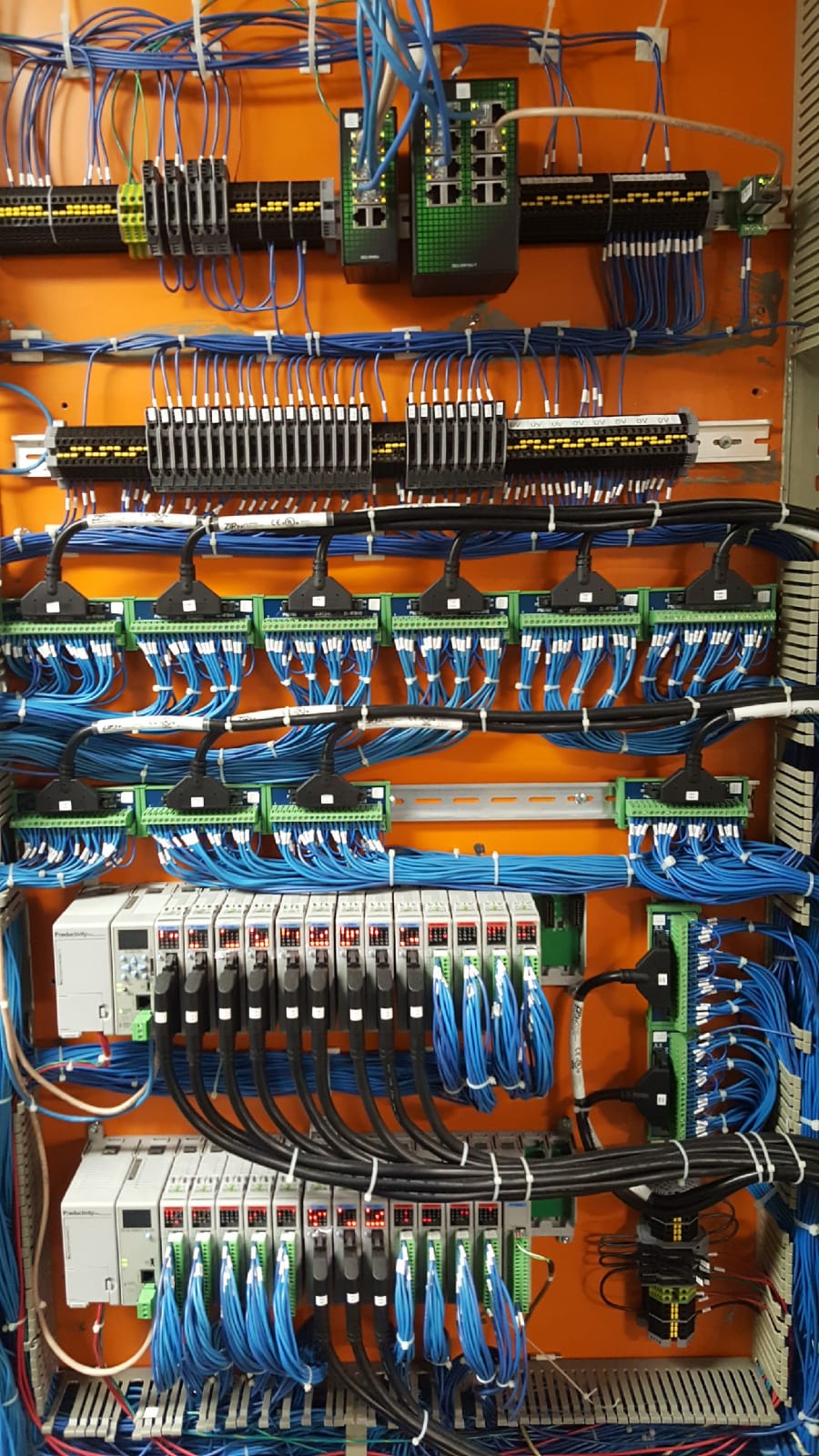

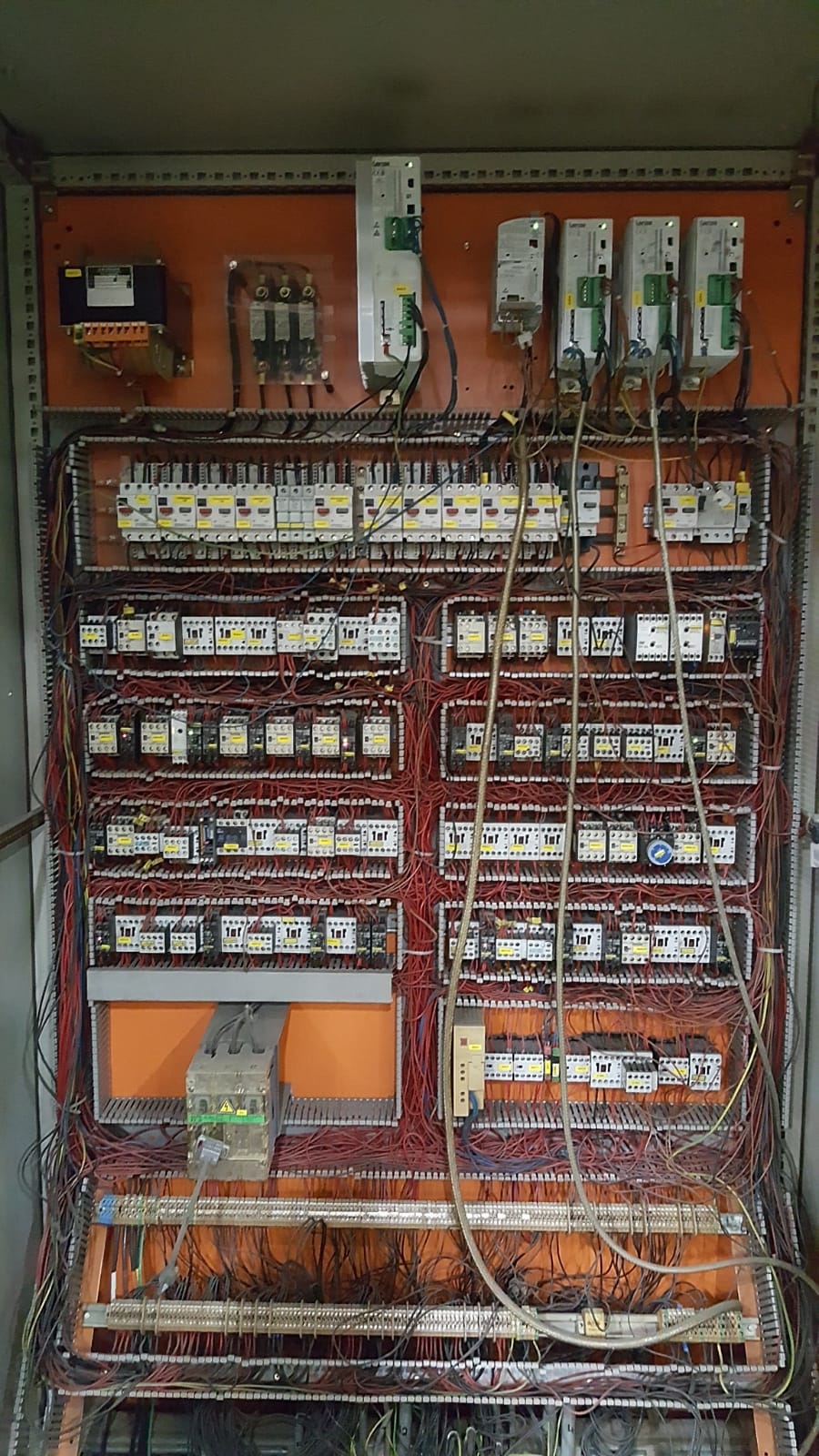

- The electrical system was remade completely in 2013

- No. of valve stations: 2. The main valve unit works but needs to be upgraded to run at

maximum speed. The second valve station is present but is missing a part.

- Voltage 50 or 60 Hz

- Parts or software would be items that could only be purchased from the company that rebuilt

the machine. This applies to the new electrical system. Everything is available to purchase

directly from distributor.

- Vacuum pump

- Machine dimensions: W 3 m x L 35 m x H 4,2 m

- Machine is in working conditions and is producing valve sacks on daily base. There is

possibility to overhaul the machine locally by a specialized company before dismantling and

shipment.

- Availability: January 2022
