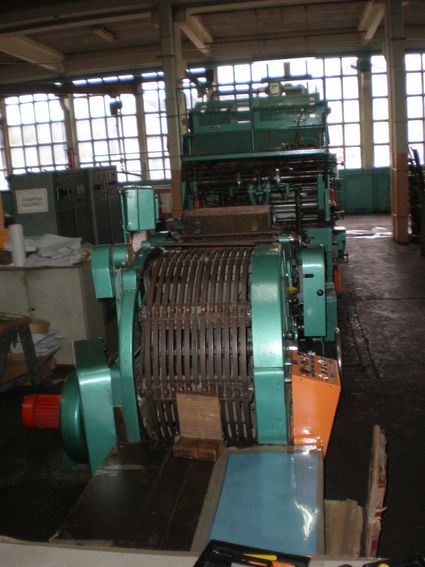

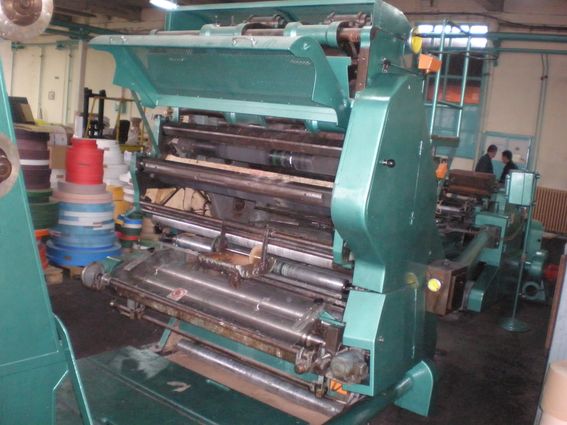

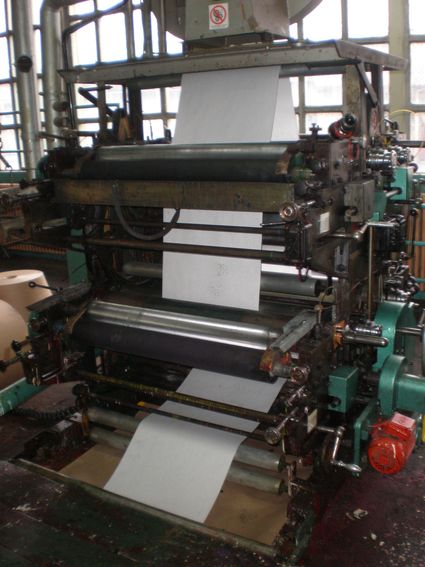

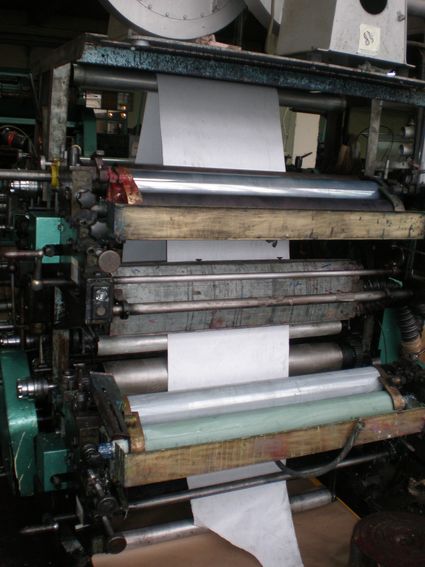

Machine for flat and satchel paper bags for bakery,fast food and candy stores
Made by:Windmoeller and Hoelscher
Type:Matador S 2-CD 3014
Consisted of two units:
1.print type QMS992 No 20425
Max.width of print 100cm
repeat length 80, length of bag 77cm, print in 4 colors
2.paper bag machine type CD3014 No 20424
year of production : 1970
Dimensions:3m wide and 10m long
Weight:about 6 tonns
Bag width min/max: 90-450 mm
Bag length min/max: 200-800 mm
Spare parts/tools/:
-forms 9, 10, 12, 13, 14, 16, 18, 18.5, 20, 21, 22, 23, 25, 28, 30,
31, 32, 34, 35, 40, 42 cm
-gears/cut off length/ in suitable measures to forms
Max. reel dia.: 1000 mm
Max. core dia.: 76mm
Material: Paper 40-110/m2
Machine is in production
