Bottomer Windmöller & Hölscher AD 2365

-          Year of production: 1971.

-          Refurbished in 2014.

-          Open mouth sacks and valve sacks.

-          Width of the sack: 350-700 mm.

-          Bottom width: 80-240 mm.

-          Open mouth sack length: 560-1020 mm.

-          Length of valve sack: 460-1340 mm.

-          Valve length: 80 to 320 mm.

-          Bottom center distances: 380-1270 mm

-          Number of valve units: 2 pcs.

-          Number of valve layers: 2 layers.

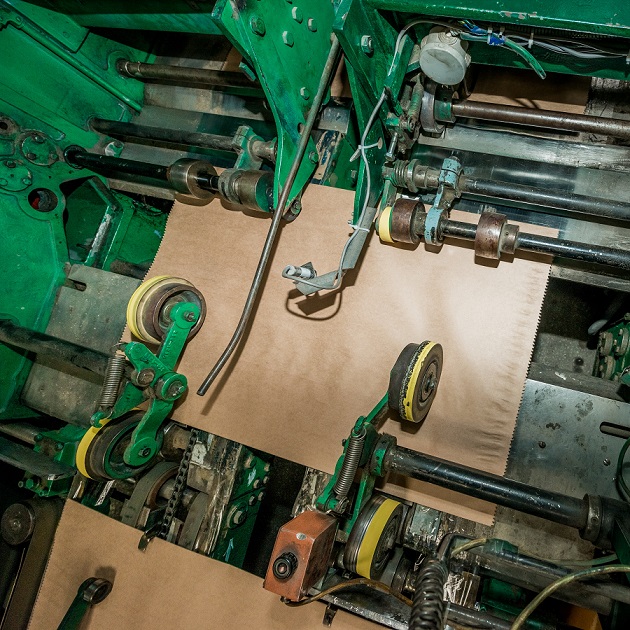

-          Knot of formation of a bottom and insert of the valve of a paper bag.

-          Speed: 60-80 bags / min.

          Perforation: 4 rows through at the top of the bag and / or on each layer (including a polyethylene layer along the entire length with an interlayer displacement).

-          Number of printing colors: without the possibility of printing on the cover sheets.

-          Preliminary system of printing on paper: without the possibility of printing on the cover sheets.

-          Suitable for bags for cement, dry building mixes, gypsum, food solids, chemicals, charcoal, animal feed, seeds.

-          Open bag for coal 2.5 / 3/5/10 kg, for food and non-food bulk materials up to 25 kg;

-          Closed with valve from 15kg to 50kg.

-          Power consumption: up to 100 kW.

-          Voltage: 380 V (50 Hz).

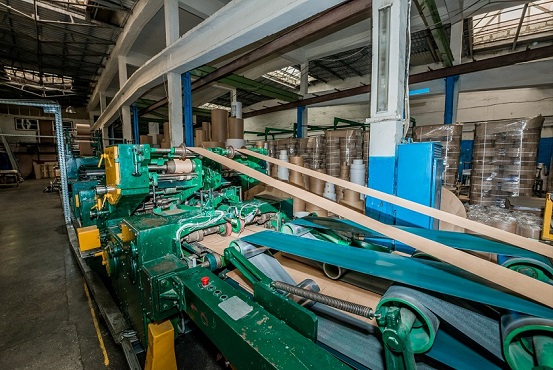

-          Production line

-          Weight: 22,000 kg.

-          Line is visible in production and immediately available

No° Click:21019

Video for bottomer wh ad 2365
