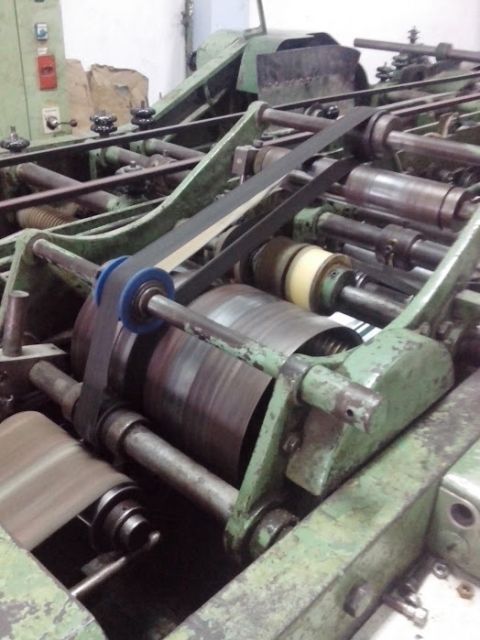

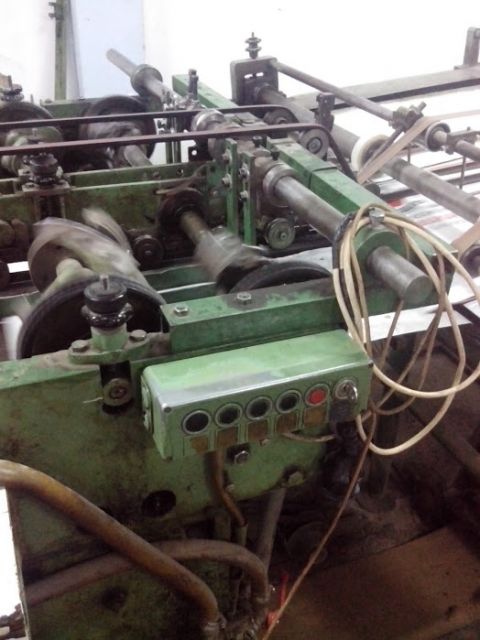

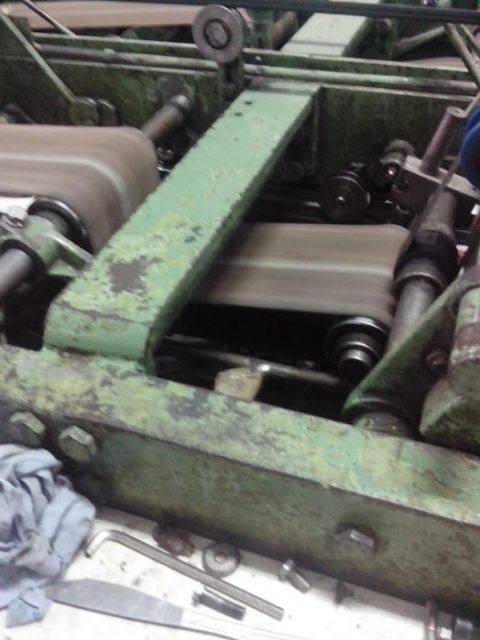

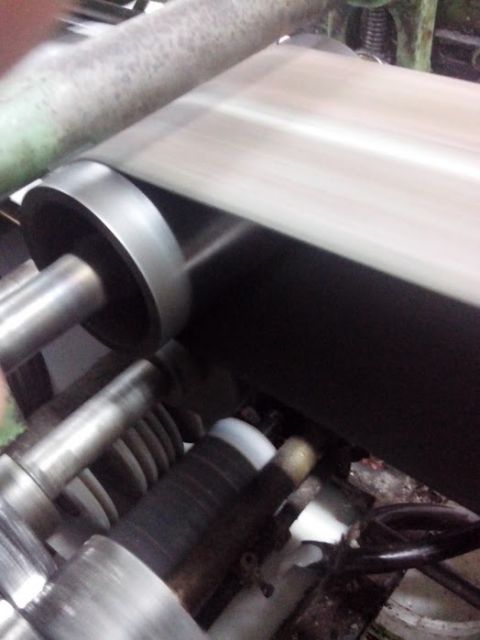

Gartemann&Hollman 525
producing valve paper cement sack
-sack length:58-107/665-115,5 cm
-sack width:32-60 cm
-bottom width:7-15,5 cm
-tube length:68-117/85-134 cm
-bottom centre to bottom centre min/max:51-100 cm
1 station for forming and cutting sack bottom
1 station for sucking and opening bottom
1 station for forming and positioning ventil and adding double ventil from paper or pe
1 station for glueingg bottom
1 station for reinforcement on the bottom/bottom patch/one color flexo print for both bottoms
1 station pressing of bags at the end with drying,with counter of bags in bundles,transport line for gathering bags
gluers of different sizes for bottom
other different parts of machine
