W+H Triumph 3
no. S 1632

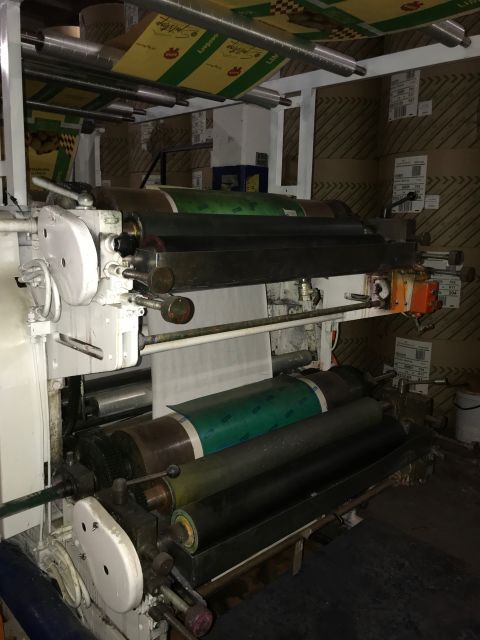

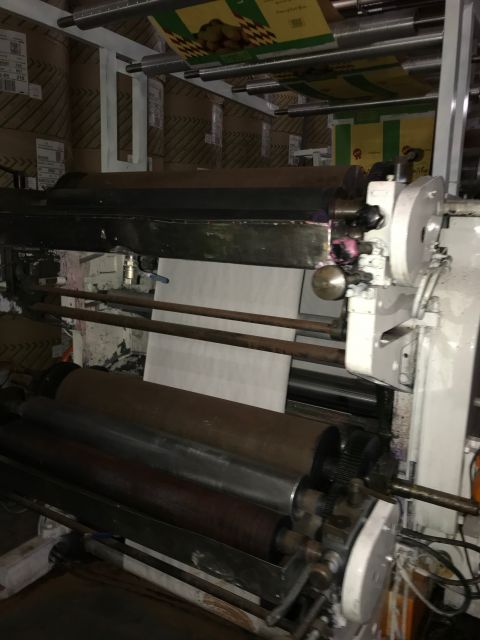

- with in-line printer 4 col.
- one or two plies bags (one ply 90 grs or 2 plies of 50-80 grs)
- with photocell
- machine can work actually by 3 stations (and not 6), but machine can be improved in future with 3 stations more
- New servo system (changing of length takes 30 seconds by touch screen PLC) PLC upgraded to point out faults on the machine making troubleshooting simple for the operator. It can also be upgraded to change the counting of bags.For changing the bag width exist a specific forming plate for each size;
- bag width range: 180- 305 mm
- tube length: 600 - 890 cm (35 inch)
- with gusset
- bottom up to 220 mm
- max web width. 1070 mm

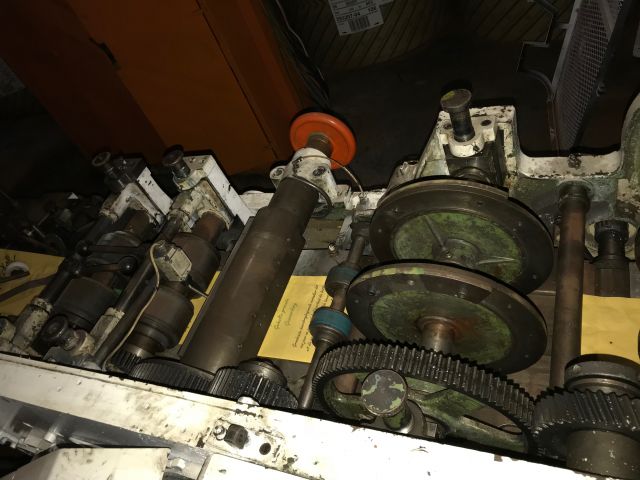

- with forming plate & gears, cylinders
- machine has been modified to make 10 and 12,5 kg bags (longer then standard machine)¨
- production speed: 55 bags/min. (max production speed 110 bags/min.)
- machine was cleaned and painted and following works completed in last 2 months:
replaced all delivery grippers
reconditioned intermediate drum taper lock
changed rubber draw rollers
renewed fore folder bush on flange operator side
reconditioned opening suction valve
changed worn out sprocket on folding bar chain drive
overhauled servo drive (change from compensator to servo)
replaced concentric and eccentric gears on folding bar unit
changed cross paste roller gear
reconditioned main motor guard to fit
replaced all drip trays and attachments
repairs to former plate bed and guide rollers
replaced main drum springs shafts and holders
repaired delivery chuck
replaced locking wheel for length adjustment
- immediately available
