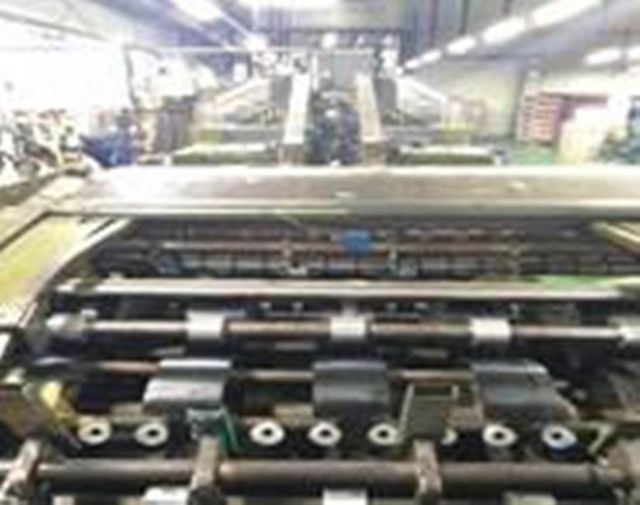

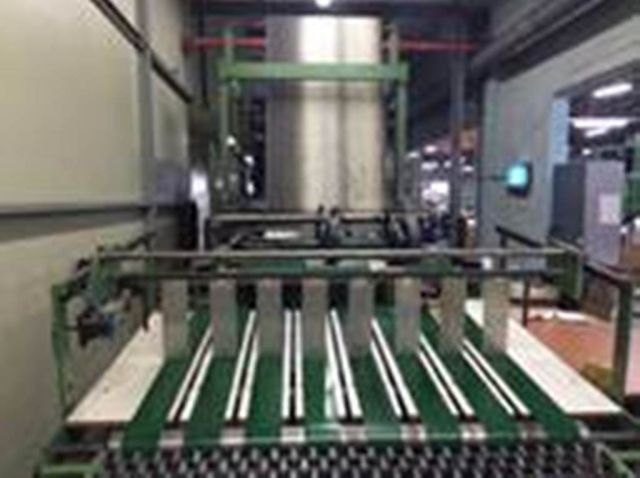

G+H BOTTOMERfor multiwall paper sacks-2nd hand, manufactured in 1983, complete with S-Press Conveyor

Sack width: 300 - 650 mm

Sack length for bottom width of   70 - 125 mm           : 340 - 1205 mm
Sack length for bottom width of 130 - 185 mm          : 460 - 1265 mm

Bottom width (flush/stepped-end): 70 - 185 mm

Bottom center line distance for bottom width of   70 - 125 mm            : 270 - 1080 mm
Bottom center line distance for bottom width of 130 - 185 mm           : 530 - 1080 mm

Bottom capping strip - Cut off length: 180 - 580 mm

   - Cut length in steps of   : 100 mm
   - Paper reel width                            : Max.   250 mm

   - Paper reel diameter                     : Max. 1300 mm

Valve Unit -Cut off length: 100 - 280 mm

   - Cut off length in steps of             : 50 mm

   - Paper reel width                            : Max.   400 mm

   - Paper reel diameter                     : Max. 1300 mm

No° Click:6831

Video for BOTTOMER G+H PROGRES 542
