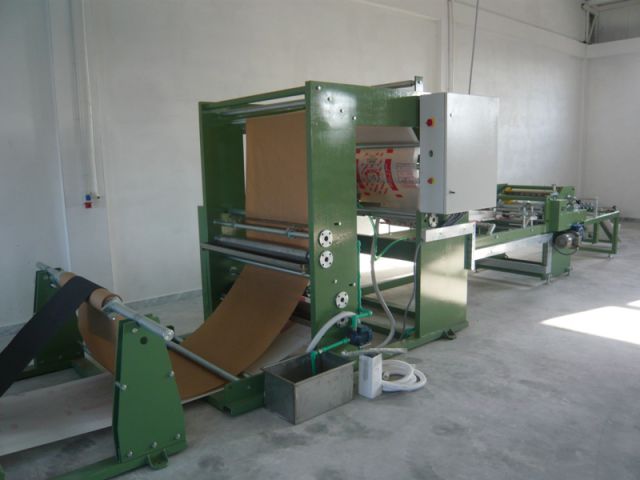

TUBER WITH 4 COLOR PRINTER

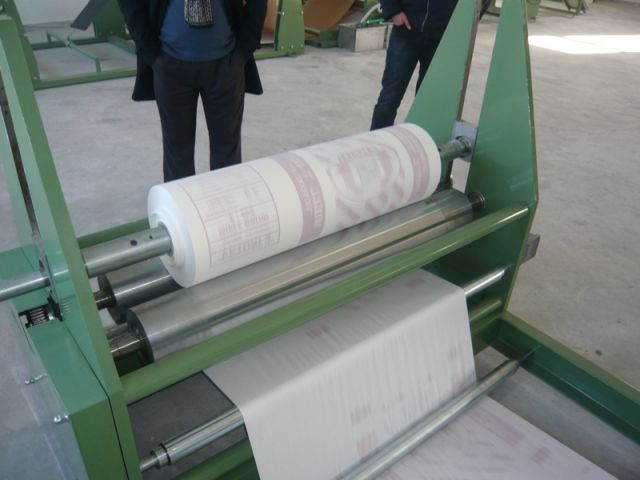

1.unwinding unit

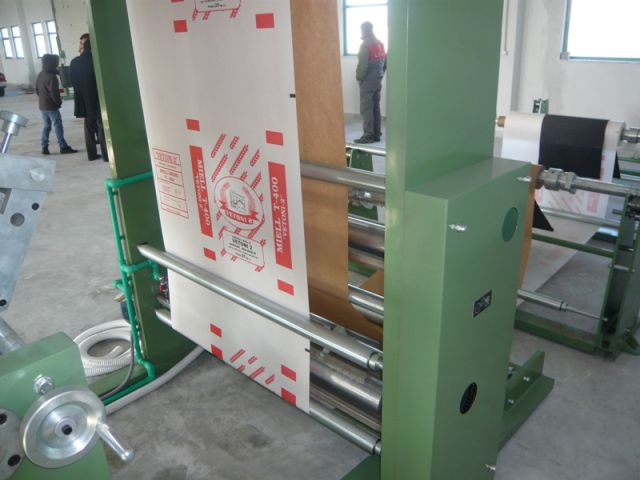

2.glueing unit /cross and longitudinal paste/

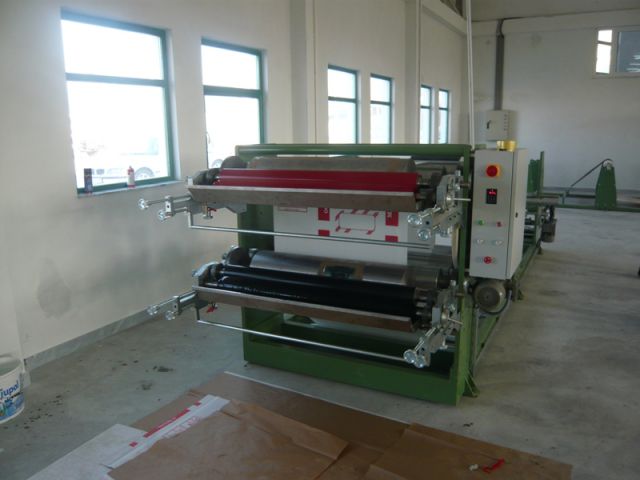

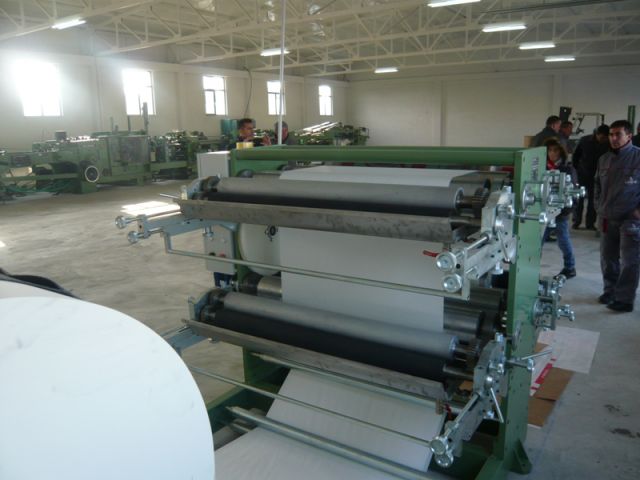

3.flexo printer 4 color unit

4.tube forming unit /adjustable forming plate/

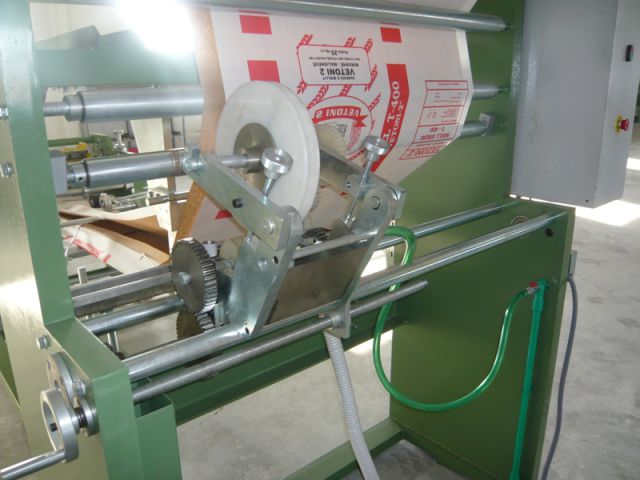

5.cuttng device/rotating knife/

6.pumping glue system

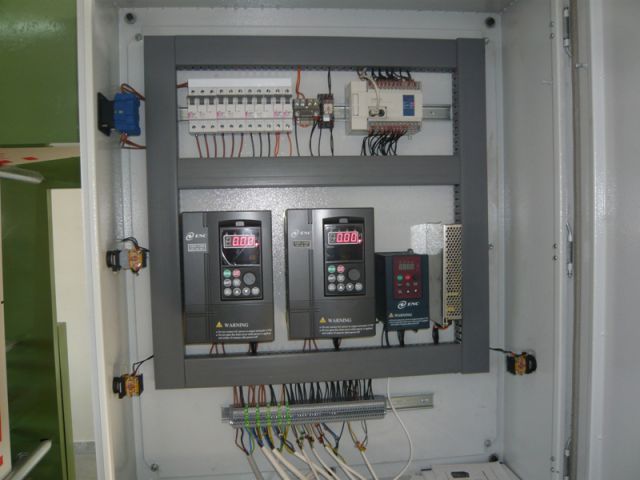

7.electro cheme

Main data:

1.working width                                          1300 mm

2.diameter of unwinding roll                    1200 mm

3.max size of the tube /bag/                      55x110-14cm

4.voltage                                                        380V,50hz

5.Installed power                                         8 kw

6.Capacity:                                                     6000 pcs/h

7.dimensions:                                              2200x2000x175000 mm

Running machine:

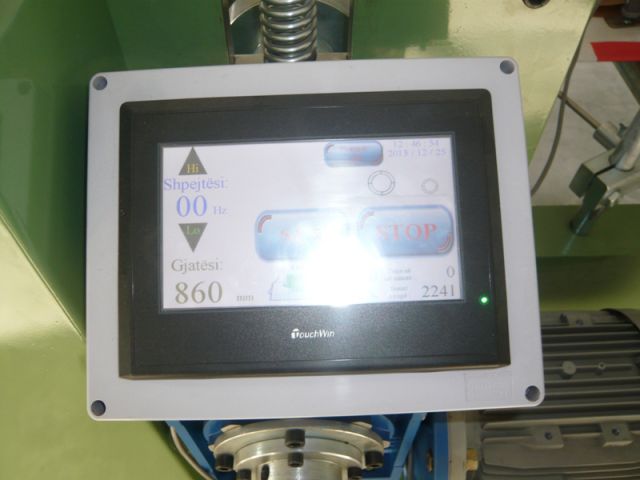

-adjusting speed                                         frequent regulation

-adjusting breaking forces                        manually

Besides machine there is:

-unwind axe                                                 3 pcs

-printing cylinders with gears                  4 pcs

Producer due to delivery provides:

-electroscheme

-list of spare parts

-certificate of security

-manual for handling and running machine

Delivery term;  130 days for whole equipment from date of downpayment

Delivery:   free factory/buyers transportation/
