F+K TAIL END PRINTER 900 mm
F+K tail end printer 4 color from 1993 year
pitch 3.18 for binding with paper bag machine.
Web width is 900 mm and print width is 890 mm.
One set of printing cylinders 410 mm

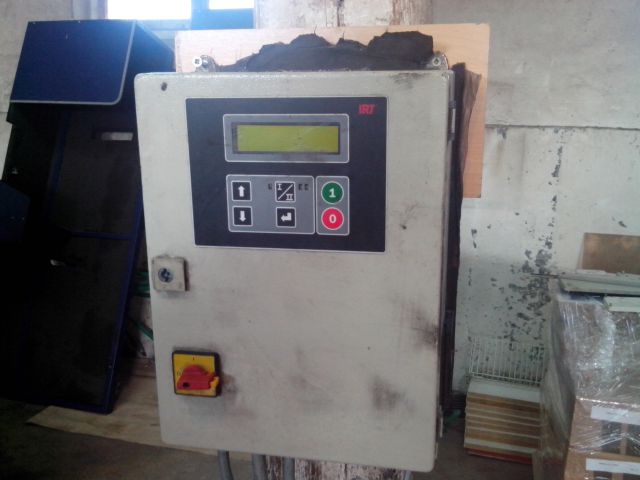

Machine is computer driven by Siemens Simatic S-5 computer
Machine has an automatic print register,dr blade closed chamber system and pneumatic color pumps
Machine has free drive motors for mixing color when machine stopped
Machine itself has an device for left and right and up and down adjustment,
same with mutual handle for stop print controll for all 4 colors at once.

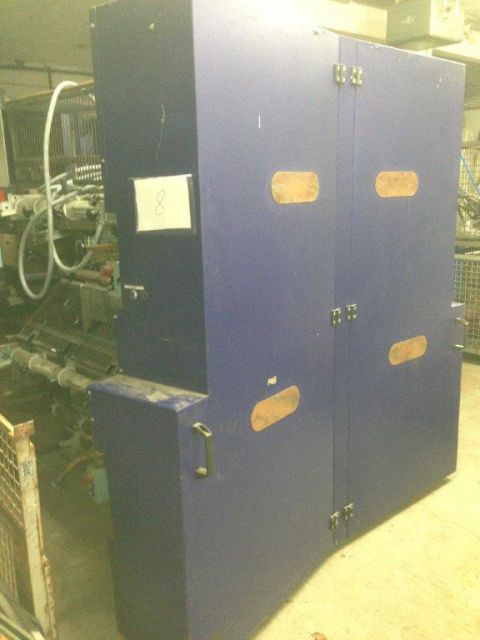

Drying by IC driers with fan
The printer was a part of Fischer krecke Combi 31 BB bag machine
