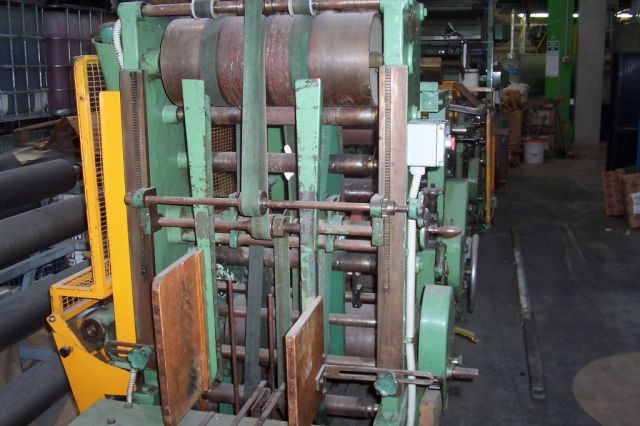

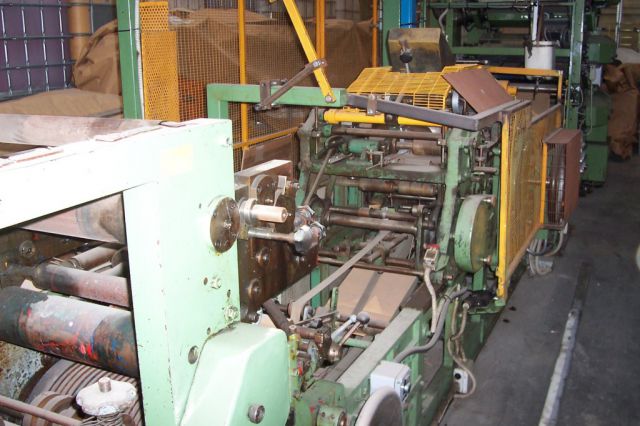

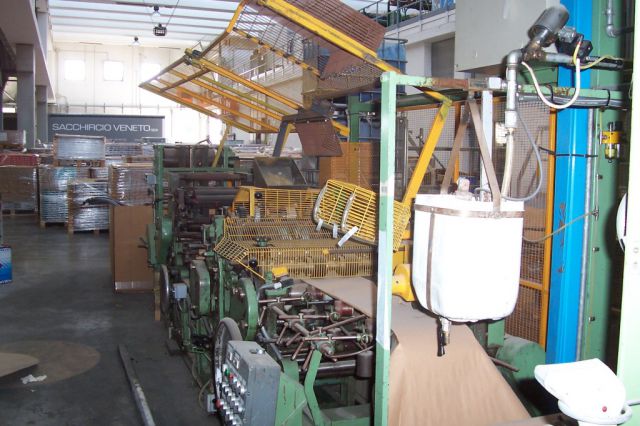

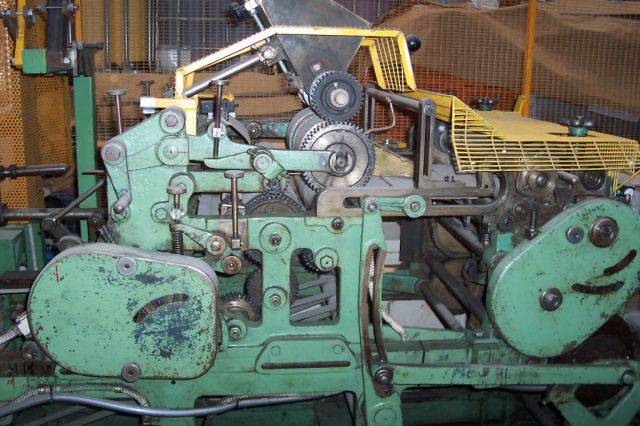

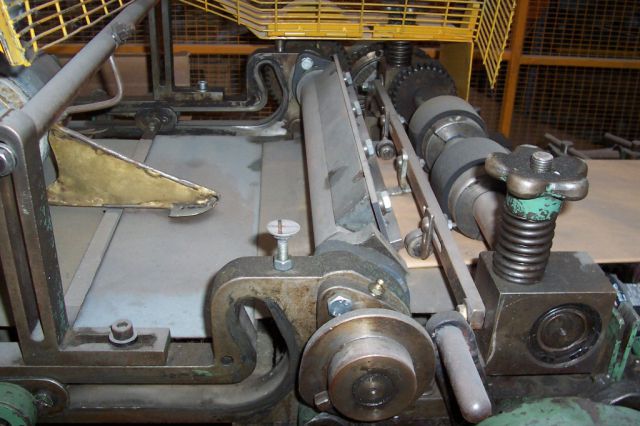

GARTEMANN & HOLLMANN mod. OLIMPIA paper bag making machine
with in-line 6 col. CMF stack type flexo of 1989.

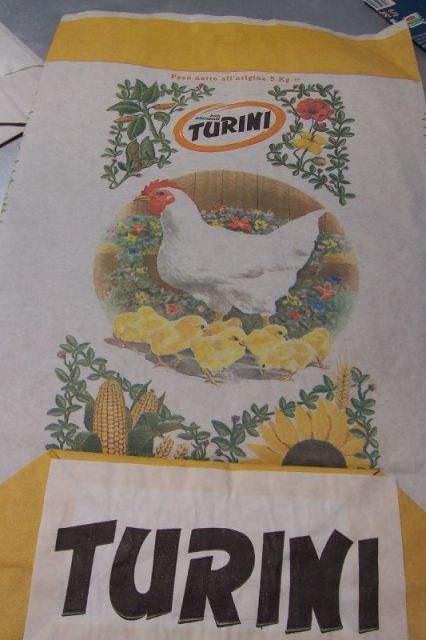

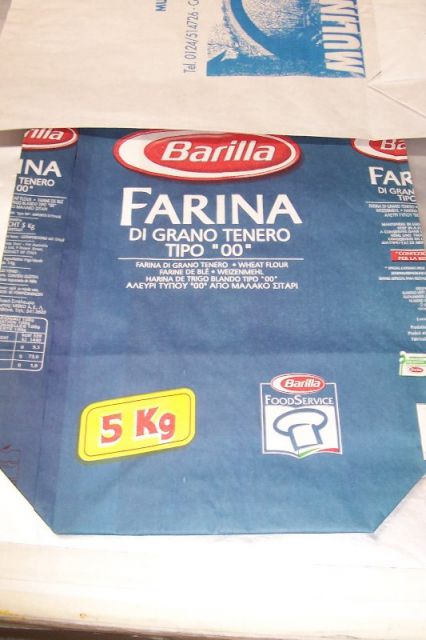

This paper bag machine can produce 1 ply bags, 2 ply bags and also 3 ply bags.
Bag widths: 250mm, 280mm, 300mm and 350mm.
Bottom widths: from min. 90 to 130mm.
Finished bag/sack lengths: from 420mm to 650mm.
Production speed: max approx 60 finished sacks/min.
Print repeats: from min. 420mm to max 750mm.
Available parts for following sack lengths: 420mm, 440mm, 470mm, 500mm, 530mm, 560mm, 580mm,
610mm, 650mm, 700mm, 750mm.

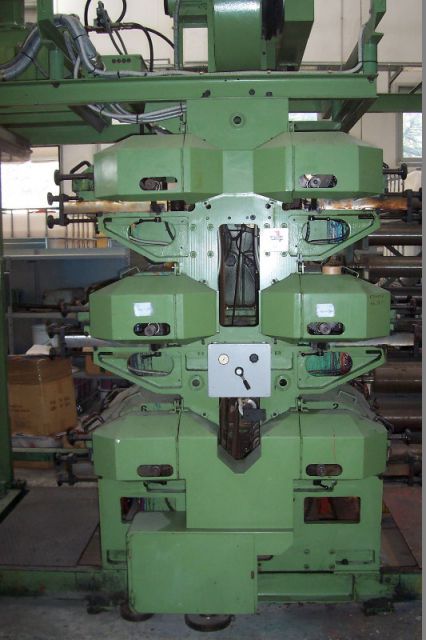

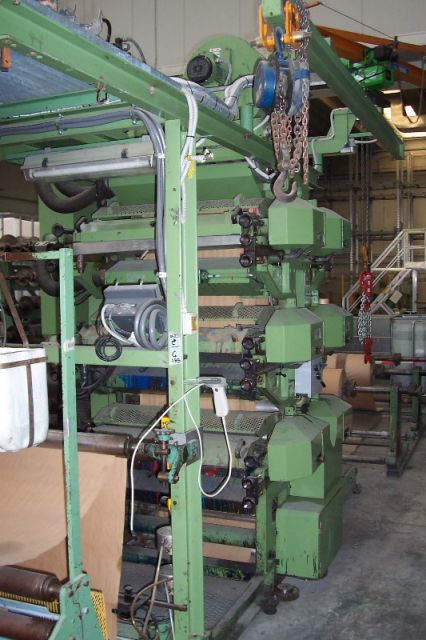

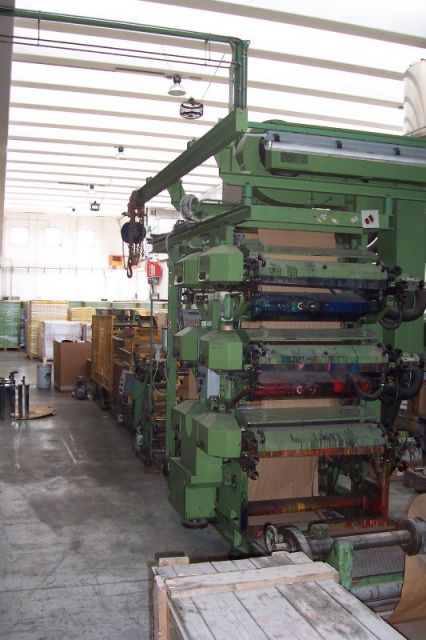

The in-line CMF Flexo is equipped for 6 colors and its equipment covers 2/4 print cylinders for each size.
The machine is equipped with: bottom patch unit and one color print.
The CMF 6 colour flexo has a max print width of 800 mm, print repeat from 420mm to max 750mm, the print units rotate also when the flexo is stopped.
With electric drying section.
This line is visible in operation with 1 week previous notice.
Available immediately if unsold.
