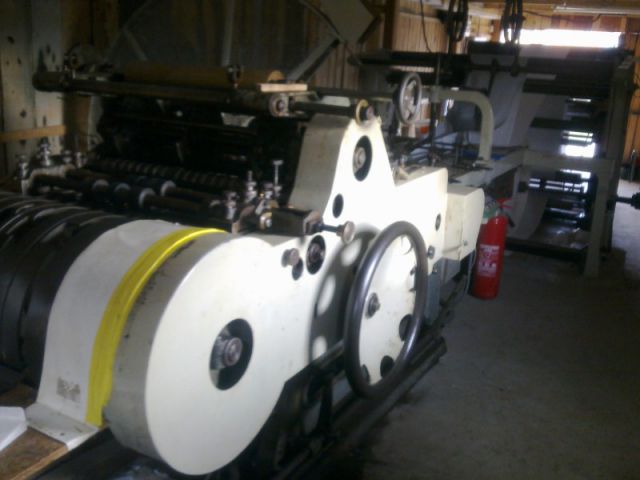

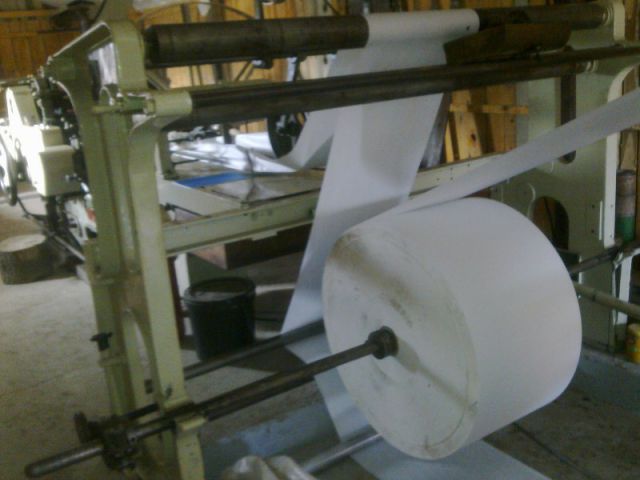

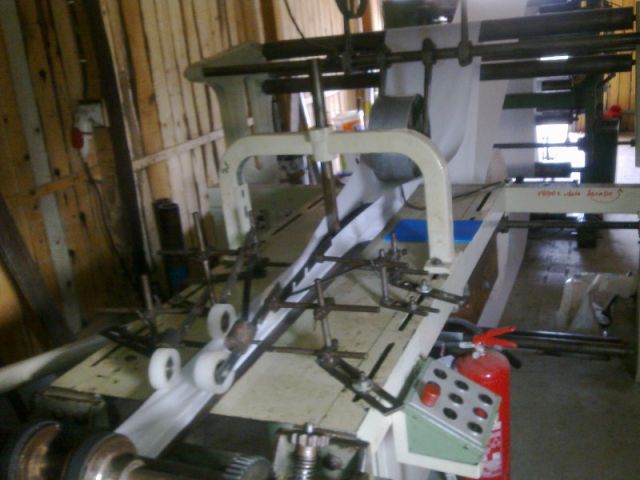

Flat & Satchel Paper Bags Making Machine Holweg

Manufacturer:Holweg

 type Titan

year of construction:1970

Machine condition:Operational

Technical data:

Holweg bag machine bag length 260-800mm Bag width 55-470mm

Fischer Krecke 2 colors flexo printing width max 850mm

Printing length 260, 300, 340, 370, 460mm

Working speed 1500-200 bags in minute,with putting second knife speed goes to 400 pcs/min

The machine is in very good condition

- Length gears:26, 30, 34, 36, 37, 38, 40, 42, 46, 49, 52, 53, 54, 60, 62, 70 cm. / with adding extra knife we get half size lengths/

- Form plates: 5.5, 6, 7.5, 9, 9.5, 10, 11, 11.5, 12, 12.5, 13.5, 14, 15, 15.5, 17, 18.5, 20, 23.5, 24, 25, 27.5, 29,5, 33.5, 37, 47 cm

-driving motor

SIMENS schucert 380 Volts
from  6,8 -15 A

from 2,2 - 6,6 KW
from735 do 2200 movements/min

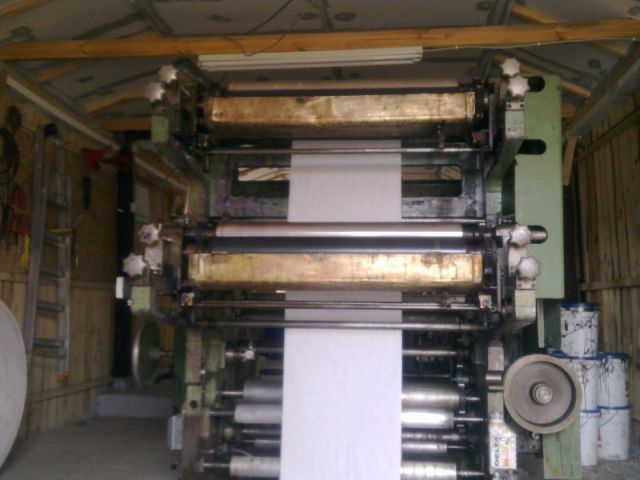

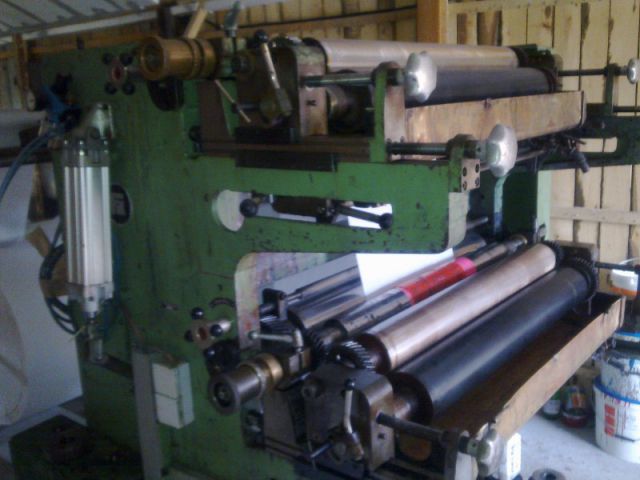

Printer

- FISCHER KRECKE AVA

- 1980 year,two color

-working width 900 mm

- print 850 mm

- chrome counterprint rollers

- adjusting of print

Printing rollers:    26 cm 2 color

                          30 cm 2 color

                          37 cm 2 color (with 2 knives length of  18,5 cm )

                           46 cm dve boje (with 2 knives length of  32  cm)

                           34 cm 1 color

Machine and printer together make length 9m and width 3 m

 The data are mechanically translated in the english language.

No° Click:11501

Video for flat and satchel Holweg Titan
